Reverse Osmosis Water Filtration Systems

Reverse Osmosis Water Filtration System

CONTACT US

NuStream Water Treatment offers Vertex® brand Water Filtration Systems.

Series 50 - High Volume Certified Systems Certified systems with 50 GPD provide more water when you need it

4-stage and 5-stage undersink Reverse Osmosis filter system with high volume 50 GPD membranes optimized to treat city water using the existing water pressure. IAPMO Certified, these sturdy and reliable US made systems have been in the field for over 15 and are proven to be reliable. VERTEX PureWaterMachines fit under most sinks and make clean, great tasting water at the point-of-use, eliminating the need for bottled water. An automatic shut-off valve conserves water by shutting the unit off when the storage tank is full.


The 5-stage system with a 50 GPD membrane and 5 filter stages blocks high sediment contamination. This 5-stage model is designed to ensure water quality, membrane performance and filter life where the incoming water contains a high amount of sediment as in some well water systems. An extra pre-filter stage is added before the membrane. This design can also be used to extend time between filter changes.

VIEW PDF

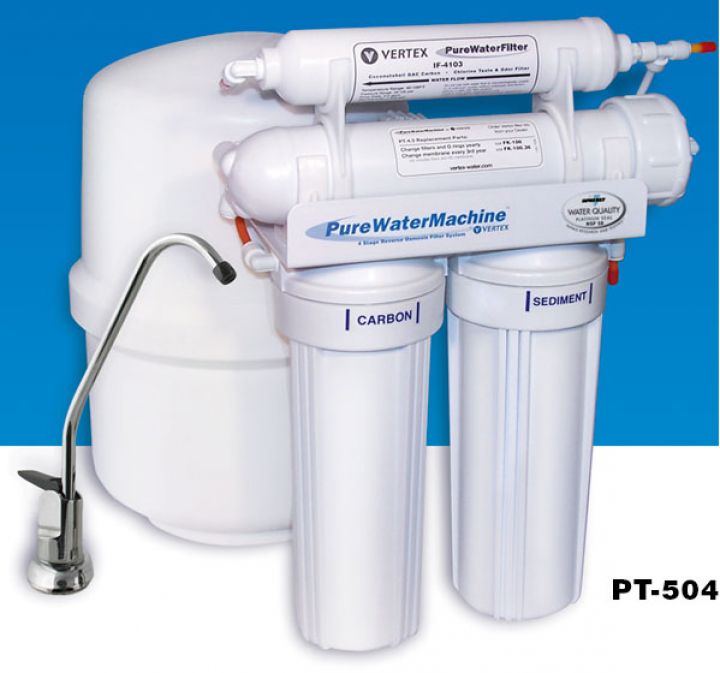

PT 504

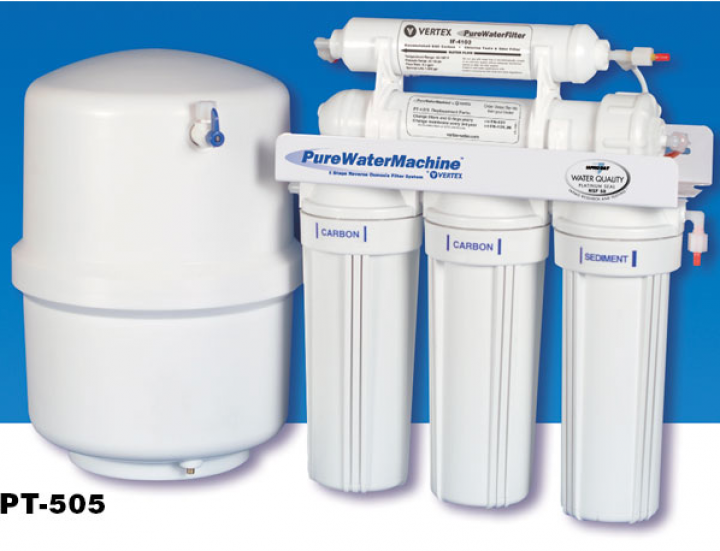

PT 505

Features:

  • Auto shut-off valve (conserves water)
  • Flow restrictor - modified capillary
  • Long-reach, non-airgap chrome faucet included
  • Threaded feed-water adapter with metal ballvalve
  • Drain connection included
  • 1/4 inch flexible polyethylene tubing with quick-connect O-ring seal fittings
  • 2 year limited warranty

Stage One

Sediment Filter, 5-Micron Polyspun Cartridge

2 1/2" dia. x 10"

Stage Two (Optional)

10 Activated Carbon Block Filter 5 Micron

2 1/2" dia. x 10"

Stage Three

Activated Carbon Block Filter 5 Micron

2 1/2" dia. x 10"

Stage Four

Reverse Osmosis Membrane

50 GPD TFC @ 65 PSI Pressure Differential

Stage FIve

Granular Activated Carbon Post-Filter

In-Line, 2" dia. x 10"

Tank

4.0 Gallon Plastic Tank (metal tank available)

Pre-pressurized with Butyl Bladder

(2.5 gal. water capacity when full)

Spicifications

Shipping Weight:

4-stage 25 lb.

5-stage 28 lb.

Dimension:

4-stage 14"W x 6"D x 18"H

5-stage 15.5"W x 6"D x 18"H

Tank: 11" dia. x 15.5"H

Condition Of Use

Water Must be microbiologically safe

Temperature, 40 -100 degrees F

pH Range, 3 to 10

Feed pressure, 40 to 100 psig

Maximum TDS, 1500 PPM

Turbidity, less than 1.0 NTU

Certified Reduced Contimenants

Arsenic, Barium, Cadmium, Chromium III & VI, Copper, Cysts, Fluoride, Lead, Nitrates, Nitrites, Radium 226 & 228, Selenium, TDS, Turbidity, Tested for structural integrity, chemical extraction and reduction of contaminants
